Model:

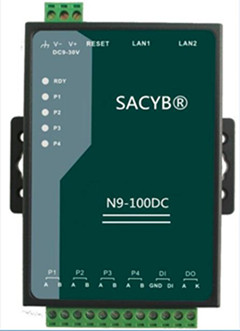

N9-100DC, N9-101DC; N9-101DC is with loop control function, as below

Technical index
Soft and hardware

Hardware features:
Main system
CPU:                 industrial level ARM9 embedded microprocessor, 400MHz
RAM:          64MB SDRAM
Flash:         128MB NAND Flash

Network interface
LAN:            1/2个10/100Mbps

Serial interface
RTC
RTC:

LED indicator light
power supply:      PWR
serial port:      P1, P2
internet access:      LAN1, LAN2

special function
temperature examination:   support
encipherment function:   support
hummer:     support

Mechanical features
weight:      100g
size:        115 × 100 × 26 mm

Working environment
working temperature:   -40～80 ℃
working humidity:   5～95% RH
storage temperature:     -50～100 ℃

power supply requirements
input:     9～48 VDC
power dissipation:     2.4W


warranty period     2 years

Software function

real-time collection

serial device document and serial interface

Data storage

SQLLITE, store 7-10 days data

data transmission

loop control(only for N9-101DC)

Local configuration and management
